300W Solar Street Light    MJ-XJ803

Power: 300W
LED Chip: 300 pcs SMD2835
Battery: LiFePO4 32650 36Ah
Solar Panel: 5V/40W(630*350mm)
CCT: CW(6000-6500K)
Luminous Flux: 2600lm
Lens Degree: 150°*70°
Installation Height: 4-5m
Discharge Time: 18+ Hours
Radar Sensor: NO
Lamp Dimension: 600X300X80mm
Material: AL+PC Lens
Surface Treatment: Grey
Installation: Wall/Pole Mounted
IP Rank: IP65
Packing: 3 pcs/ctn
Description


1.Product Advantage:

  • High lumen,brightness increased by 30% with Japanese Emperor PC lens.

  • Large luminnous angle,25% increase in irradiation area

  • P-Mos charging,charging efficiency increased by 20%

  • Intelligent power management system,automatic distribution of electricity during night


2.Product Parameter:

Model

MJ-XJ801

MJ-XJ802

MJ-XJ803

MJ-XJ804

Basic parameters

Lamp body material

Die casting aluminum

Die casting aluminum

Die casting aluminum

Die casting aluminum

Lens material

polycarbonate

polycarbonate

polycarbonate

polycarbonate

Lamp body size mm

520x260x80

520x260x80

600x300x80

600x300x80

LED Qty(PCS)

192

192

300

300

Battery capacity(mAh)

18000

30000

36000

48000

Solar panel

5V/25W

(430x350mm)

5V/35W

(580x350mm)

5V/40W

(630x350mm)

5V/50W

(670x445mm)

Discharge time

18 hours+

18 hours+

Two rainy days

Two rainy days

Discharge current

3.3V/2.5A

3.3V/4.2A

3.3V/4.8A

3.3V/5.6A

Luminous flux

1150LM

2200LM

2600LM

3000LM


3.Lighting Mode:

Power reduction in different modes

Start up time

0-0.5H

0.5-2H

2-4H

5H

5H to morning

Normal mode

100-80%

80-60%

60-50%

50-40%

40-30%


4.Product Dimension:



5.Application:

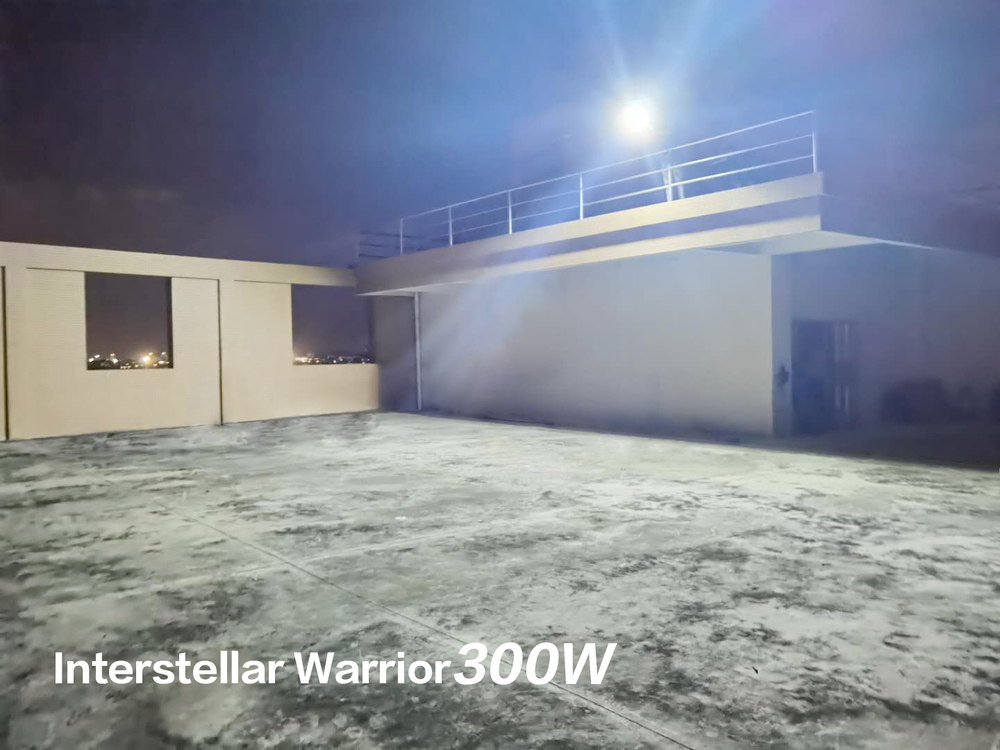

6.Lighting Effect During Night:
